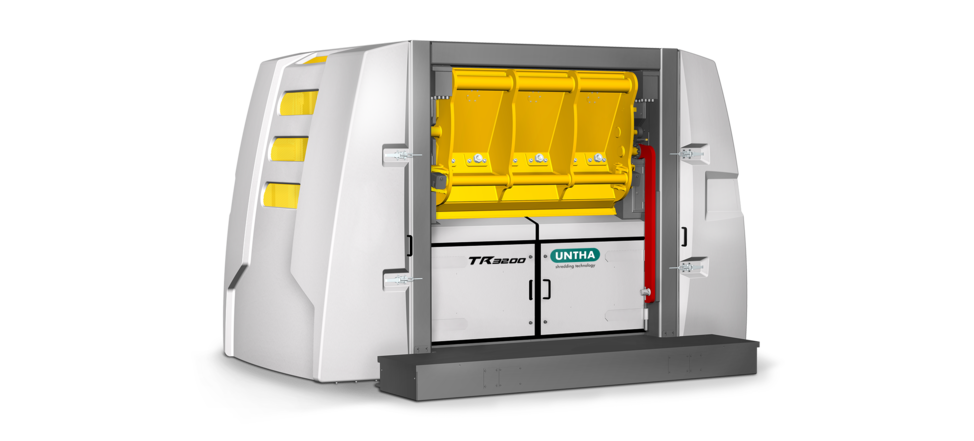

TR2500/3200/4000

Your advantages at a glance
- High availability and high throughput performance
- Trouble-free drive concept
- Efficient protection system against foreign objects
- Quick blade replacement system

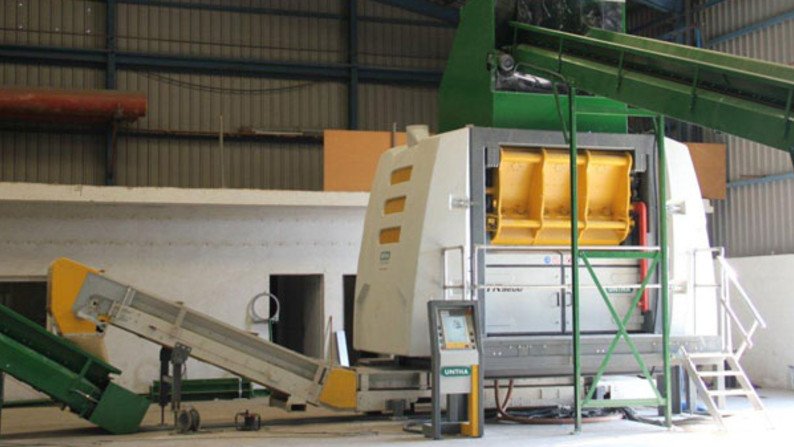

Reliable psot-shredder for secondary fuel recycling with very high throughput

The reliable TR series was specifically designed for re-shredding fractions with high calorific value and is mainly used for secondary fuel processing. The TR is a high-performance RDF/SRF shredder that also generates high-quality end fractions in addition to having high throughput performance.

This re-shredder contains quite a bit of smart technology to increase your company's outputand the quality of your alternative fuel. The large rotary shear diameter of 1,100 mm enables a large perforated screen surface thereby providing high throughput performance. In addition, this re-shredder comes standard with a frequency transformer that regulates the rotor speed thereby optimizing the throughput performance.

The low TR series operating costs are a direct result of the low maintenance costs and the very long service life. Long maintenance intervals, short replacement time for cutting tools and an automatic central lubrication system render this re-shredder particularly low maintenance. Another highlight of this RDF/SRF shredder is its automatic foreign objects hatch. When foreign objects are pulled into the machine, the hatch opens automatically and prevents damage to the cutting unit.

Our experienced project engineers will be happy to help you plan and implement your project.



TR series applications:

  • Pre-shredded household waste
  • Pre-shredded industrial and commercial waste
  • Pre-processed plastic bales and plastic film
  • Plastic waste from automobile dismantling
  • Packing materials
  • and many more.

More details available below in the downloads section!



Technical data

TR2500

Power [kW]: 250

Hydraulic power [kW]: 3

Cutting chamber width [mm]: 1.800

Ø Rotor [mm]: 1.100

Rotor speed [rpm]: 175

Weight [t]: ~ 22

Throughput* [t/h]: ~ 12

L x B x H [mm]: 4.400 x 2.470 x 2.890

Remark:: *Depends on the type of material and perforated screen diameter



TR3200

Power [kW]: 315

Hydraulic power [kW]: 3,0

Cutting chamber width [mm]: 1.800

Ø Rotor [mm]: 1.100

Rotor speed [rpm]: 175

Weight [t]: 24

Throughput* [t/h]: ~ 15

L x B x H [mm]: 4.400 x 2.470 x 2.890

Remark:: *Depends on the type of material and perforated screen diameter



TR4000

Power [kW]: 400

Hydraulic power [kW]: 3

Cutting chamber width [mm]: 1.800

Ø Rotor [mm]: 1.100

Rotor speed [rpm]: 220

Weight [t]: ~ 25

Throughput* [t/h]: ~ 18

L x B x H [mm]: 4.400 x 2.470 x 2.890

Remark:: *Depends on the type of material and perforated screen diameter



Accessories

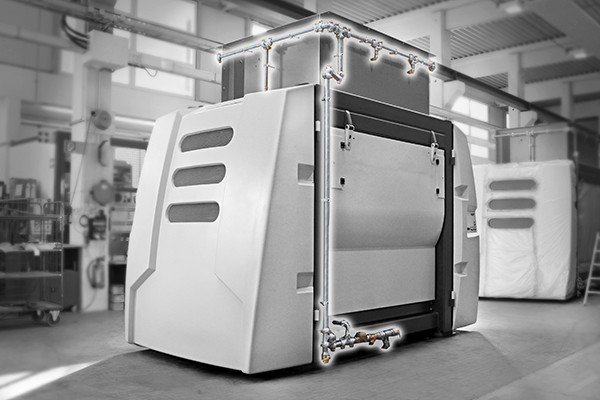

Fire-extinguishing system

We don't let anything burn. In terms of fire protection and fire-extinguishing systems, we rely on the expertise of leading providers of fire-extinguishing systems. A camera monitors the discharge conveyor belt and is able to activate the fire-extinguishing system within milliseconds in the event of spark formation.

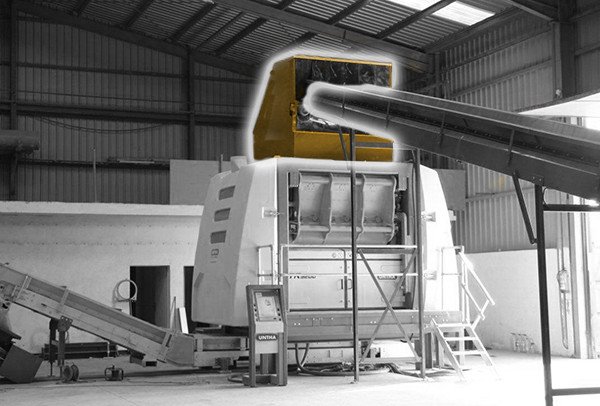

Hopper

We offer different hopper shapes that are exactly adapted to your infeed type. Regardless of which side your shredder feeds from – we will always be able to offer a suitable solution.

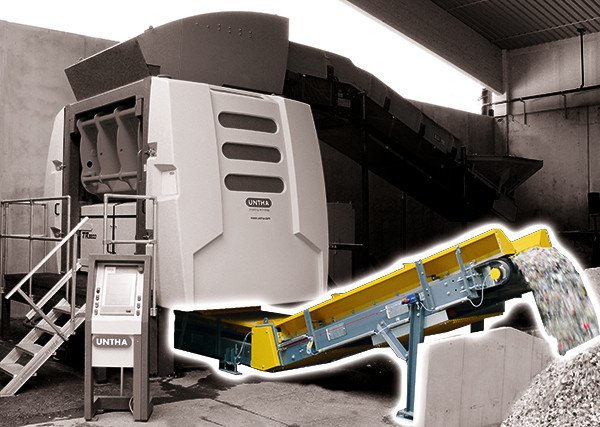

Conveyor technology

We offer suitable infeed, discharge and incline conveyor belts for our shredding machines, thereby ensuring smooth material transport.



Control cabinet room

We recommend that our customers use a control room to protect the electric control. Thanks to the positive pressure, the electric control cabinet and the frequency transformer are protected against dirt and dust, which increases their service life and minimizes their vulnerability.

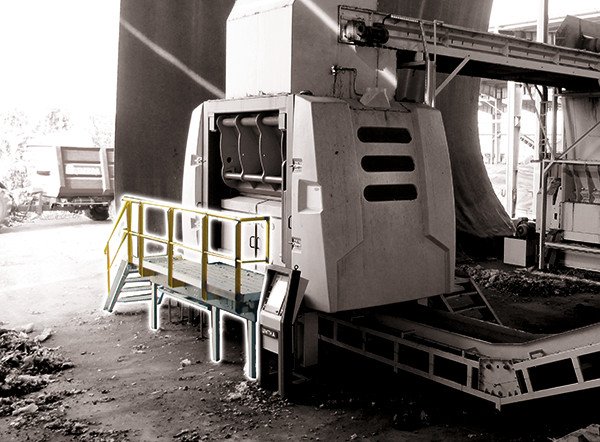

Service platform

A service platform provides you with an easy, secure and ergonomic access to the machine in the event of servicing or maintenance.
