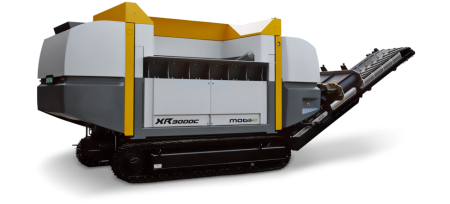

XR mobil-e

Your advantages at a glance
- Mobile shredding concept with electrical drive
- Sturdy design with high resistance to foreign objects
- High material quality with high throughput performance
- Low maintenance expenditures
- Low noise emissions

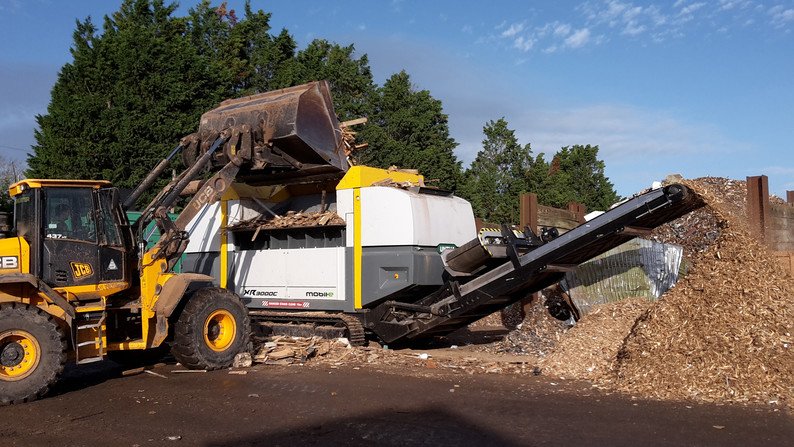

Mobile electromechanical shredding system for efficient waste processing

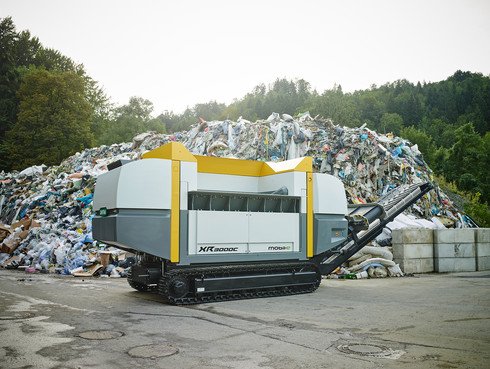

The new XR3000 mobil-e is a revolutionary machine concept in mobile waste shredding. It capitalises on many benefits of an electromechanical drive without having to forego the advantages of a mobile machine. This gives you maximum efficiency and flexibility.

Just like all our XR products, the XR mobil-e is also equipped with the energy-efficient UNTHA Eco Drive. This insures you that your operating costs will be minimised and that material quality will be maximised. The key feature: Unlike diesel operated and hence energy-guzzling, noisy mobile machines that are harmful to the environment, the XR mobil-e shreds only electrically. For the shredding process the XR mobil-e is connected to the power supply with a hands-on quick fastener. Thus your employees and your neighbours as well as the environment benefit from this feature in addition to the economic advantages that it brings.

Mobility is ensured through a reliable crawler-type undercarriage in combination with a small petrol-powered engine. The XR mobil-e can be easily moved to any spot via remote control. With an extensive range of interchangeable screens and cutters, the shredder can be configured according to the customer’s output specification. For example, a consistent 30 mm particle or a 400 mm particle size are both achievable, as is anything in between. This means the XR Mobil-e can shred bulky, MSW, C&I, C&D or wood waste with ease, to produce a homogenous alternative fuel for the waste to energy, cement, gasification or biomass markets. In addition, a height-adjustable discharge conveyor belt and an optionally available magnetic separator give you everything you need for an efficiently operating mobile shredding system.

Plug - Shred - Move

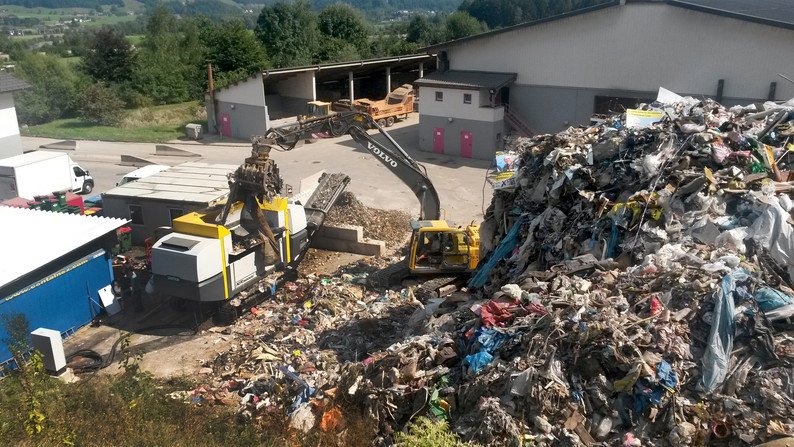

Relocate this mobile waste shredder to different indoor and outdoor locations around a site and simply re-connect it to the power supply with the quick fastener!

XR3000 mobil-e applications:

• Industrial waste
• Household and commercial waste
• Residual timber
• Scrap wood (e.g.: construction timber)
• Plastic bales
• and many more.

Technical data

XR3000C mobil-e

Power [kW]: 113 - 226

Hydraulic power [kW]: 11

Cutting chamber width [mm]: 2.960

Ø Rotor [mm]: 1.000

Rotor speed [rpm]: 0 - 35

Weight [t]: ~ 37

Throughput* [t/h]: ~ 40*

Remark:: *Depends on the type of material and perforated screen diameter

XR3000R mobil-e

Power [kW]: 113 - 226

Hydraulic power [kW]: 11

Cutting chamber width [mm]:1.960/2.960

Ø Rotor [mm]: 1.000

Rotor speed [rpm]: 0 - 22

Weight [t]: ~ 36

Throughput* [t/h]: ~ 70*

Remark:: *Depends on the type of material and perforated screen diameter

Accessories

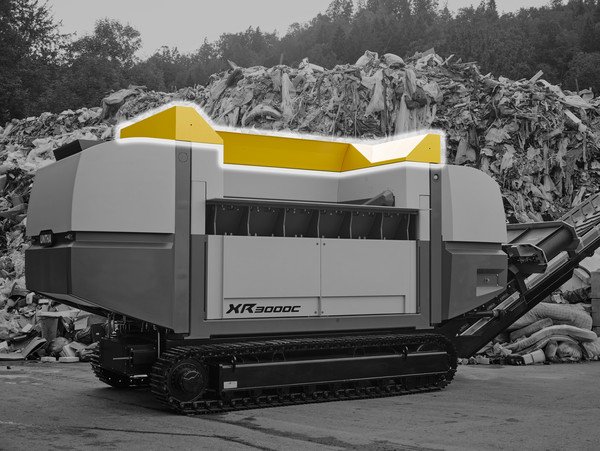

Hopper

We offer different hopper shapes that are exactly adapted to your infeed type. Regardless of whether you need a hopper for a wheel bearing infeed or a hopper with a grabber infeed – we will always have a suitable solution available.

Overbelt magnets

In terms of separating metallic iron-containing parts from the shredded material we collaborate with leading manufacturers in the separation technology field. The overbelt magnet is installed above the discharge conveyor belt and reliably separates the iron-containing parts from the output material.

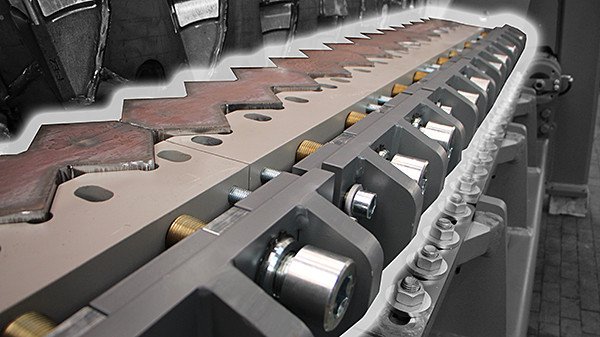

Adjustable main cutting bar

The adjustable main cutting bar offers you the option to adjust the cutting opening. The shredder can be optimally adjusted for the material to be shredded and the required discharge fraction.

This option is only available for the "cutter system"..
