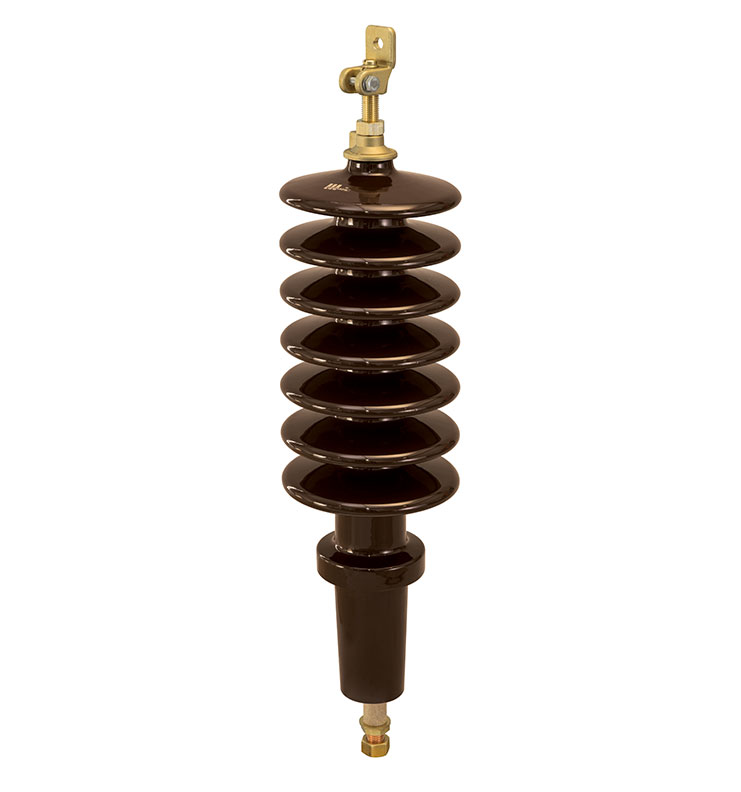

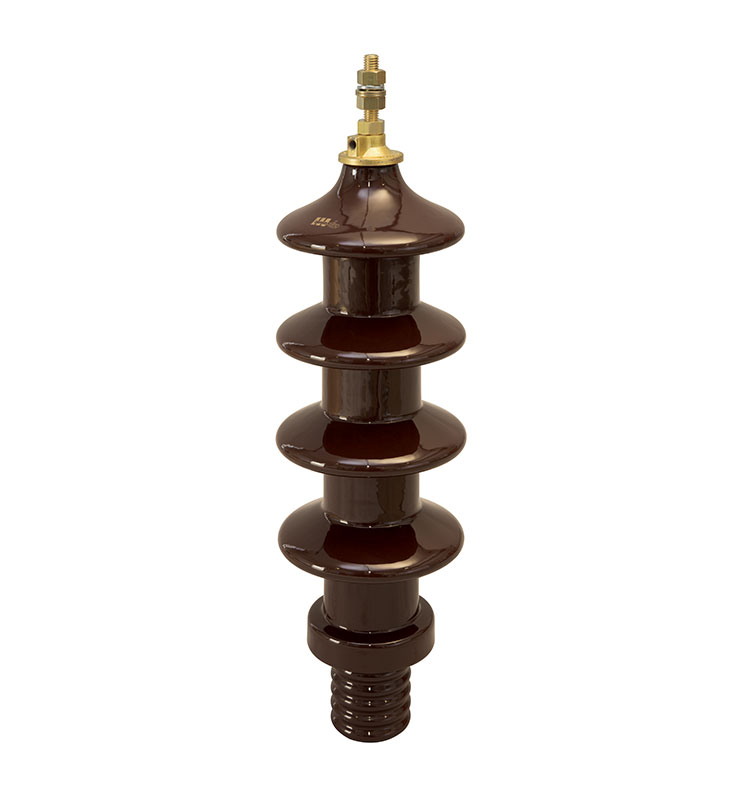

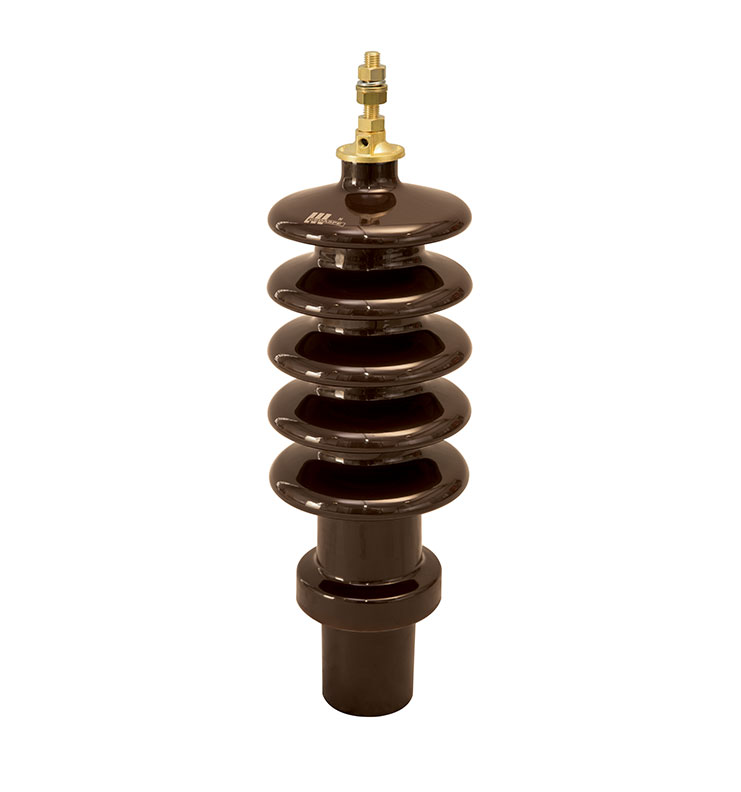

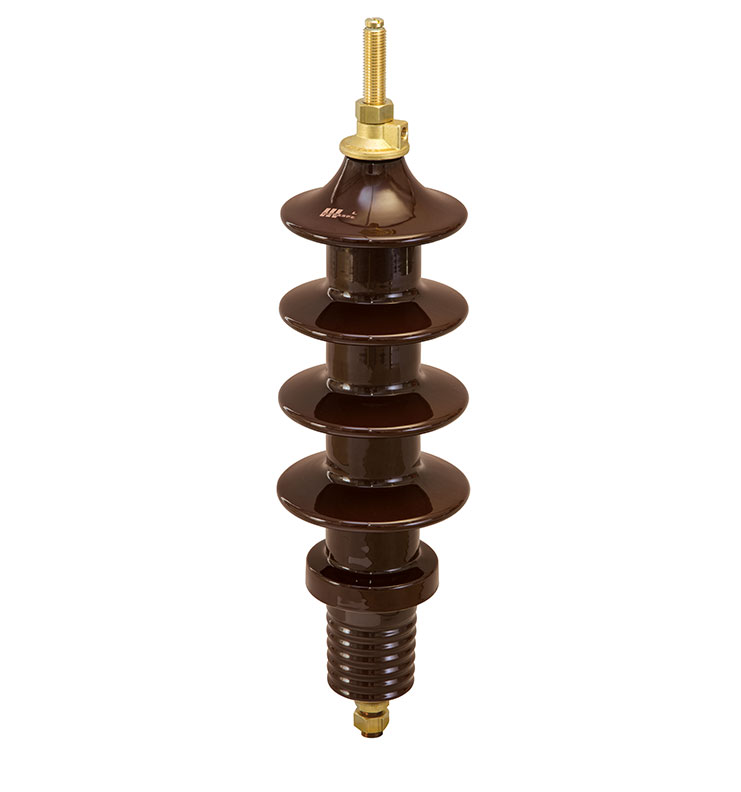

MV SERIES A tried-and-tested bushing for the high-voltage side of distribution transformers

รายละเอียด

KEY FEATURES

  • Standardized design
  • Tried-and-tested product
  • Best value-price
TECHNICAL DATA
Maximum rated voltage From 12 kV up to 36 kV
Maximum rated current From 250 A up to 630 A
Nominal creepage distance From 290 mm up to 1155 mm
Antipollution level From P1 up to P4
Standard references DIN 42531, DIN 42532 and EN 50180
Rod design Rigid stem / Drawlead / Split
Rod material Copper / Brass
Special finishing Tinplating / Silverplating
Most used rod executions Inner rod with nuts or drawlead



 PRODUCT DESCRIPTION

The CEDASPE MV series are solid porcelain liquid filled (hollow core oil communicating) bushings designed in accordance with the standards DIN 42531, DIN 42532 and EN 50180.
Primarily used for indoor and outdoor applications in the field of distribution transformers, these bushings are available in several designs and can be customized to fit almost any kind of customer requirement upon request (i.e. brass/copper conductor, tin plating, special drilling, special connectors, etc.).
This bushing type features an inner rod (available in copper or brass) and/or draw lead design according to customer specifications.
